ESG supplies valve gearboxes in Egypt — bevel, dual bevel, worm and declutch-able gear operators for manual operation, and units supplied ready for electric actuator.
01 · Gearbox Types
Characteristic

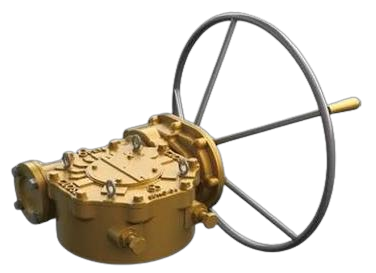

Right-angle drive between handwheel and valve stem
Two-stage bevel arrangement for higher torque multiplication

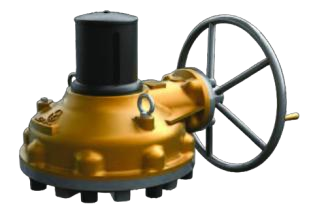

Worm and wheel drive, commonly used on quarter-turn valves

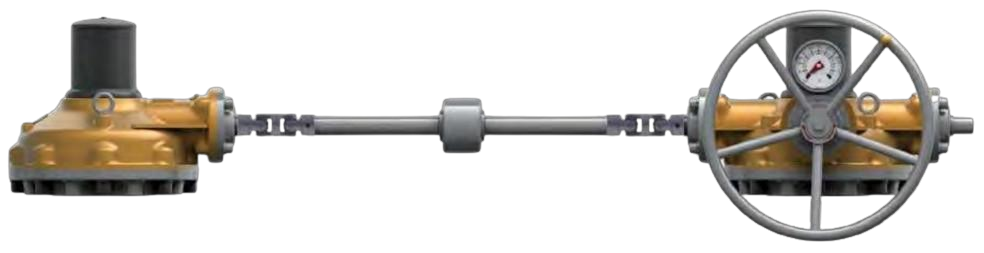

Allows the drive to be disengaged for manual handwheel operation
Handwheel-operated gear unit
Supplied with the mounting interface for later motorisation
Gearboxes
02 · Why a Gearbox Is Needed
As valve size and pressure class rise, the torque needed to seat and unseat the closure member quickly exceeds what an operator can apply to a bare handwheel. The gearbox multiplies that input torque so a large valve can still be operated by hand.
03 · Manual Now, Motorised Later
Specifying gearboxes ready for electric actuator gives a project a path to automation without replacing valves. The gear unit already carries the correct mounting interface, so an actuator can be added in a later phase.
04 · Declutch-able Operation
A declutch-able gearbox lets the operator disengage the powered drive and take over with the handwheel — the practical safeguard when power is lost and a valve still has to be closed.
05 · Where Valve Gearboxes Are Used
Large butterfly valves in water and wastewater plants
Buried valve chambers operated from surface level via extension spindles
Power plant and industrial cooling water lines
Marine and mining installations
06 · Frequently asked questions
The questions consultants, contractors and plant engineers ask most often.
Bevel, dual bevel, worm and declutch-able gearboxes.
Yes — they can be supplied ready for electric actuator.
One where the powered drive can be disengaged so the valve can be operated manually by handwheel.
